PBT3048MG
PBT3648MG
PBT3648MG-B
Safe and reliable ballistic containment is paramount for effective live-fire training. As the system of record for the US Army (PBT3048MG), the Patriot Products Portable Bullet Trap lineup can be trusted for years of safe and efficient training. Our revolutionary design prevents any ricochet danger for the shooter, while our lead clean-out tray ensures a safe and proper disposal. For maximum training efficiency, you can trust the Patriot Products system.
Standard Features:
- Rated for 5.56, 7.62 ball, and all pistol rounds
- Vulcanized rubber and 3/8” AR500 steel sacrificial plate provide dependable ballistic containment

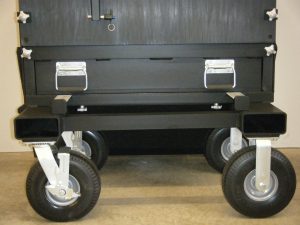

- 4 all-terrain casters, 2 of them with brakes
- Adjustable top height from 48” up to 72” tall
- All components from rubber face to impact plate can be replaced over the life of unit
- Modular design requires only basic hand tools for assembly or disassembly
- All parts are interchangeable, detachable, and stackable for shipping and storage
- Additional options: available in various sizes to meet specific requirements, location of handles can be engineered per the needs of the end user
| Part # | Description | Dimensions (L x W x H) | Weight (LBS) |
|---|---|---|---|
| PBT3648MG | 36″x48″ Patriot Bullet Trap – Military Grade | 10″ x 36″ x 54″ | 750 |
| PBT3048MG | 30″x48″ Patriot Bullet Trap – Military Grade | 10″ x 30″ x 54″ | 675 |
| PBT2448MG | 24″x48″ Patriot Bullet Trap – Military Grade | 10″ x 24″ x 54″ | 575 |
| PBT4848MG | 48″x48″ Patriot Bullet Trap – Military Grade | 10″ x 48″ x 54″ | 825 |
| PBT3648MG-B | 36″x48″ Portable Bullet Trap Base | 24″ x 43″ x 36″ | 115 |
| PBT2448MG-B | 24″x48″ Portable Bullet Trap Base | 24″x 33″ x 36″ | 95 |
| PBT4848MG-B | 48″x48″ Portable Bullet Trap Base | 24″ x 53″ x 36″ | 150 |
| PBT3048MG-B | 30″x48″ Portable Bullet Trap Base | 24″ x 43″ x 36″ | 115 |
| PBT3048-CRB | 30″x48″ Portable Bullet Trap Corner Base | 32″ x 33″ x 36″ | 150 |
